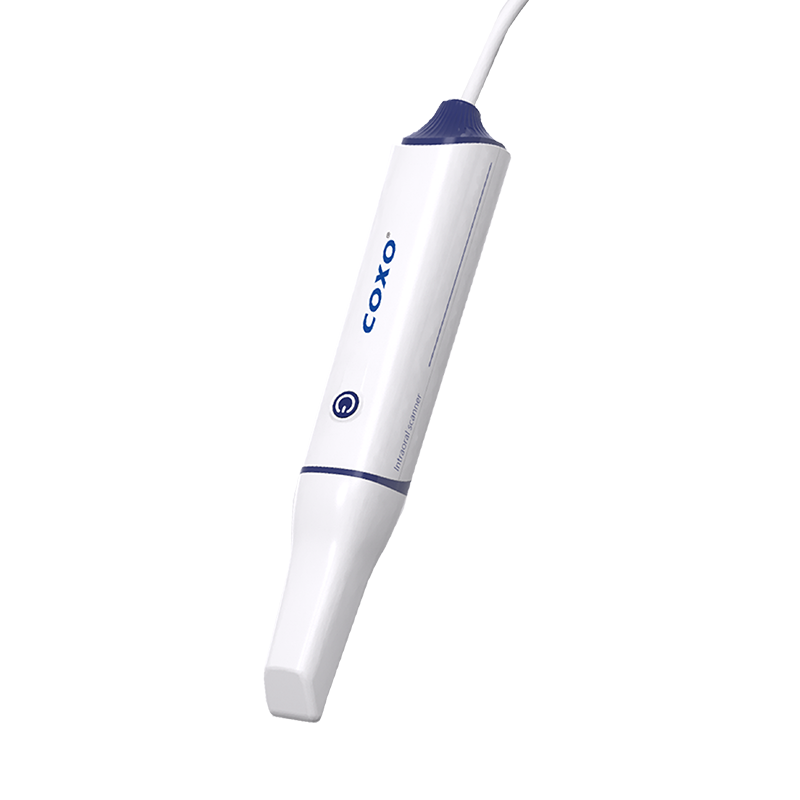

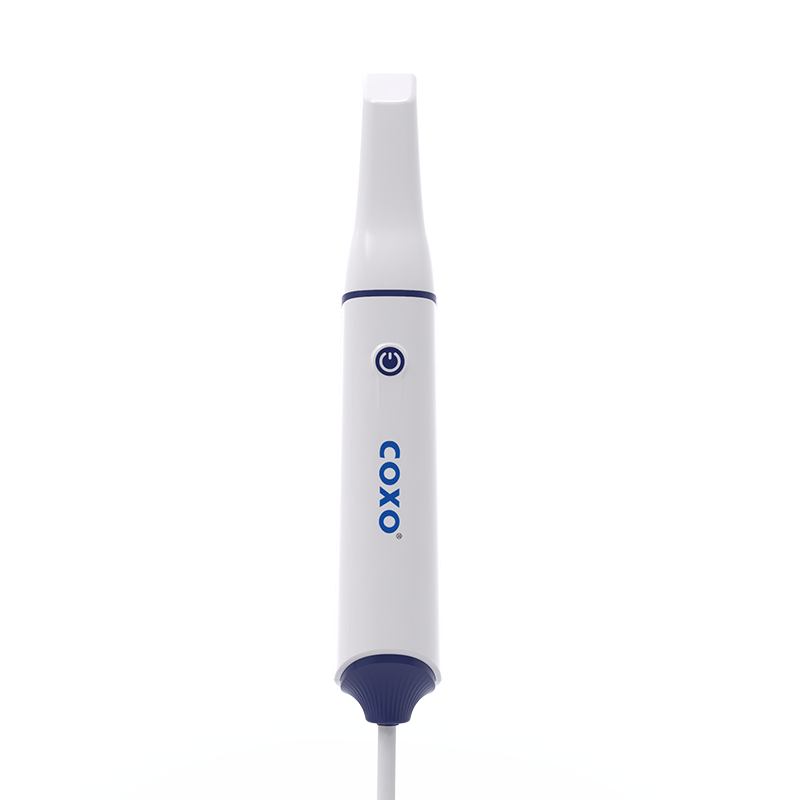

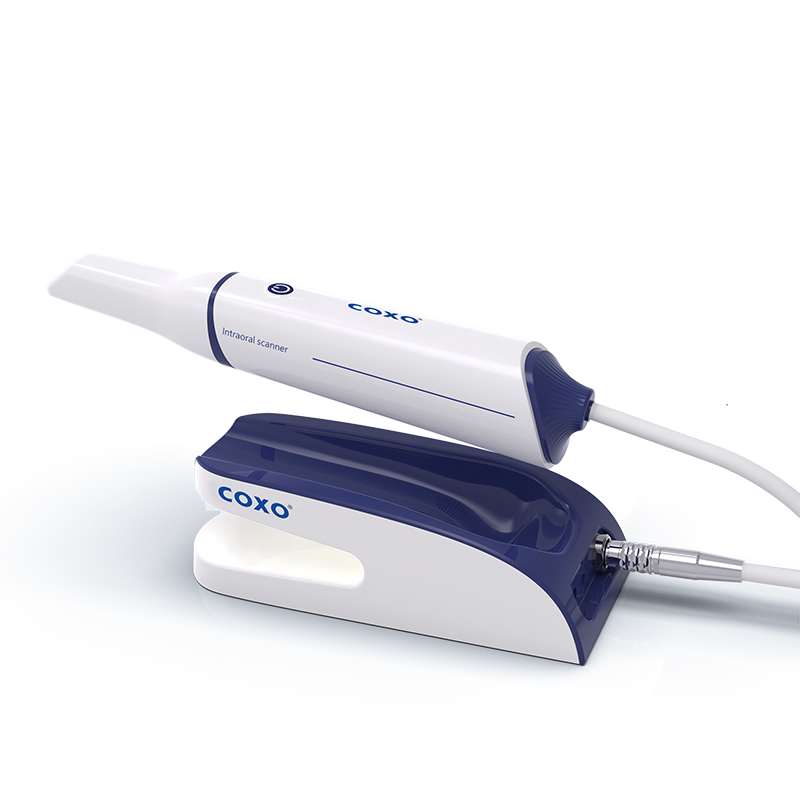

DL-300P Intraoral Scanner

Features

• Advantage of the image capture unit
• Lightweight design, easy to operate.
• Pen-type operation, the image unit has a flexible internal transformation.
• Easy and complete post-scanning area.
• Built-in integrated anti-fog design, heated to the appropriate temperature, the image unit is not complicated.
• The situation is foggy and the data is more accurate and clear.
• Provides an internal capture image real-time synchronized image and video mode display to help control the location of the image capture.
• Take more images and more accurate data.

Data openness
You can choose any repair design software, EXOCAD, 3Shape.
Optional output axis for better interface with design software.

Product Composition
It is composed of scanning handle, scanning head, base, power adapter, and 3D acquisition software.

Scope of application
The intraoral scanner uses optical scanning to collect the three-dimensional geometric data of the tooth to be repaired in the patient’s mouth, providing a three-dimensional digital model for CAD/CAM denture design and processing.

Characteristics
1. Superior image quality based on advanced CMOS technology.
2. More portable 3D acquisition process.
3. Smaller and more comfortable, durable scanning head.

Product Details

Specifications:
Model: DL-300/P
Half-mouth scanning time: 30s
Scanning accuracy: 10 μm
Depth of field: -2~18mm
Imaging principle: Triangular imaging principle
Light source: LED
Warranty period: 1 year
Continuous scanning time: ≥1 hour
Autoclavable: Up to 100 times Autoclavable 121℃ 16 mins⼁Autoclavable 134℃ 4 mins
Cart size (DL-300): 640*520*1175mm

Packing List:
Scanner handpiece (with protective tip and cable) x1
Type C to USB Converter x1
Base x1
Scanner tip (Regular Size x2, Small Size x1)
U disk with software x1
(does not include laptop or monitor cart)
