AMD-500S Dry Milling Machine
Roll over image to zoom in
$36,000.00$40,000.00 (-10%)
- Size: 590 * 730 * 775 mm
- Frame: Monobloc casting 2024-T3 Al
- Weight: 180 kg
- Tools: 10
- Fixture(s): 98mm / (optional block)
- Materials: Wax + Zirconia + PMMA
- CAM: Hyperdent, MillBox, etc.
- Spindle: 1.5kw 60krpm water-cooled
- Axis Motors: Closed-loop servo motor(s)
- Axis Gearbox: Harmonic
- Vertical Milling: YES
- Calibration: AUTOMATIC
- Tool Management: YES
- Status Indicator: YES
- Door Lock: YES
- Maintenance Reminder: YES
- Swarf Suppression: IONISED COMPRESSED AIR + VACUUM
[ Introduction ]

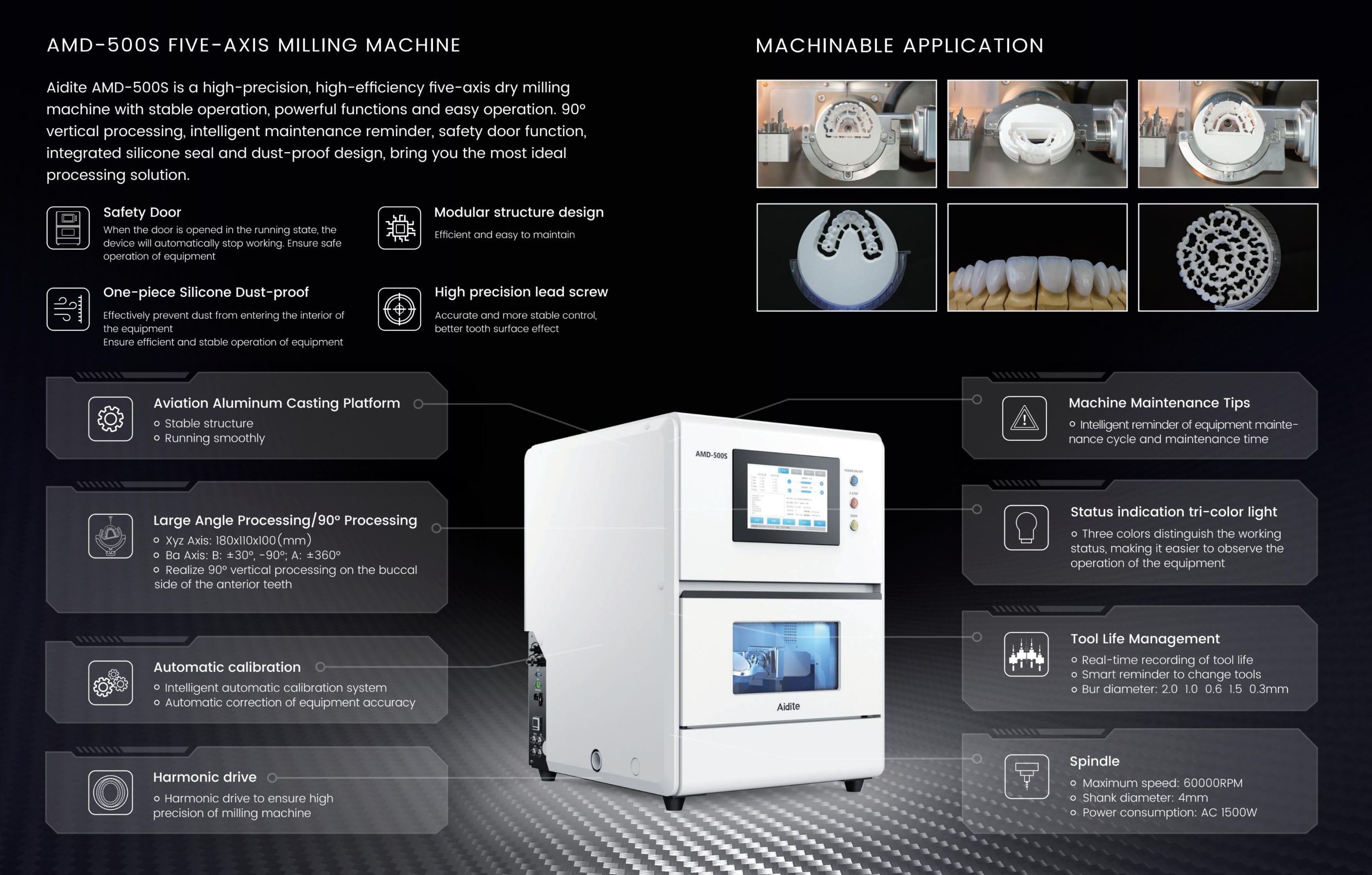

Aidite AMD-500S is a high-precision, high-efficiency five-axis dry milling machine with stable operation, powerful functions and easy operation. 90° vertical processing, intelligent maintenance reminder, safety door function, integrated silicone seal and dust-proof design, bring you the most ideal processing solution.
[ Spinde ]
Power Consumption: Ac 1500w
Water Cooling
Speed: 60000rpm
Chuck Size: Φ4 Mm
[ Machining angle ]
Xyz Axis: 180x110x100(mm)
Ba Axis: B: ±30° -90°;
A: ±360°
[ Machining type ]
Single Crown, Bridges, Veneers, Inlays, Abutments, Screw-retained Crowns, Screw-retained Bridges (Implantation Needs To Add A Separate Nesting Module)
